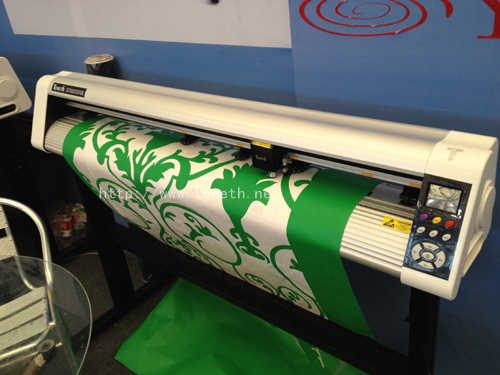

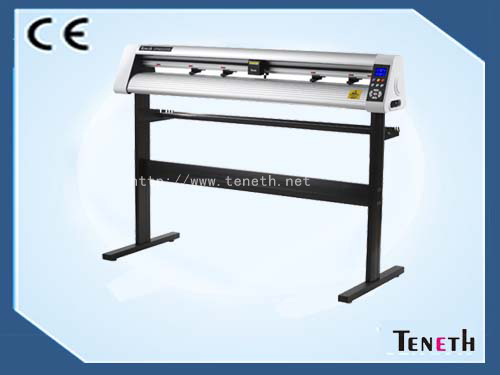

TENETH cutting plotter for vinyl film T-48L

CONTACT US LBS

Introduction

 CUTTINPLOTTER T48L.jpg







Product application:
1.Advertising signs industry
Stickers,self adhensive sticker letters
2.Diatom mud industry:
Applied to pre-cut diatom mud patterns
3.Heat transfer industry:
Cutting letters in the above of heat transfer film,dark color heat transfer film
contour cut,luminous film,various colors heat transfer PU material(used in clothes,
hats,mugs,pillows,other arts and crafts decorations)
4.Self-adhensive sticker industry:
Cutting contour line of printed stickers,self adhensive labels,PVC labels,small
quantities of printed die-cutting industry
5.Arts and crafts card paper industry:
Cutting various arts and crafts paper,greeting cards,banquet cards,paper model,
Chinese knot,etc.
(Main cutting materials:coated paper,iridescent paper,photo paper,model PVC)
6.Automotive beauty industry:
Professional car body arts custom,change car body color,exterior modifications,etc.
7.Wall sticker and car sticker industry:
Processing all types of glass wall stickers,cartoon wall stickers,car head stickers,
bumper stickers,fuel tank cap arts,etc.
(Mainly cutting stickers,reflective film,glass film)

 Cutting Plotters Parameter:

Model Information
Grade:Top Grade Brand: TENETH Market time: Warranty: 1 year
Model Number:TENETH cutting plotter T-48L
Basic Parameter
Material Sheet metal +aluminum alloy Media way Floor stand(Optional)
Max.Paper feed width 1310MM Max.Cutting Size 1205MM
Paper feeding system Drum steel thorn paper Paper feeding way Dual paper stick flat manually
Axis steel distribution Universal size distribution Number of Axis steel  7pcs
Platen device Double springs huge pressure roller holder  Number of Roller holder 4 units
Driver Micro-step driver Origin setting Set each original points manually
Cutting Speed 50-800MM/S Cutting length Unlimited
Cutting Precision 0.005MM Repeatable <0.005MM
precision
Cutting force 5-500g Cutting thickness 0.05MM-1MM
Idling Speed 0-3 gear adjustable Noise 60-65dB
Control System
Mainboard 32-bit ARM7 CPU,4MB Control Panel  11 silicon buttons + LCD touch screen
transmission mode Serial Port+USB+U disk Repeat Function Offline a key re-engraved to start
Repeat Function 1 - 500pcs Memory Function Power off doesn't remove source files
Memory Capacity 128Mb Transmission speed 38.4K/56K
Origin Memory Cutting Pause Paper Origin Memory Display Chinese and English Display Switch
Plotter Instruction Compatible DM/PL,HP/GL Output software Artcut,signcut flexi CorelDRAW,CAD,Ai,etc
Cutting Consumable
Blade Diameter 1.49mm the tungsten cutter Drawing Refills Atomic Drawing Refills
Voltage Consumption
Power supply AC90~240V/50HZ-60HZ Working Enviroment +5-+35℃,Humidity: 30%-70%
Standby power consumption <25W Working Consumption <100W
Volume/Weight
Package Size 1590×350×410mm  Gross weight 33KG
Applicable Industries
Advertisement; Glass sandblasting; Marble blasting; Die cutting samples; Article giftware making; Car/Wall stikcer; Paper Pattern; Printing; Logo and Signs.
Standard configuration:
Machine 1 set,1 set floor stand,1 serial port,1 pcs USB cable,1pcs CD,1pcs blade holder,3pcs blades,1pcs drawing pen.
Note: The above technical parameters are subject to change without any other notice.
