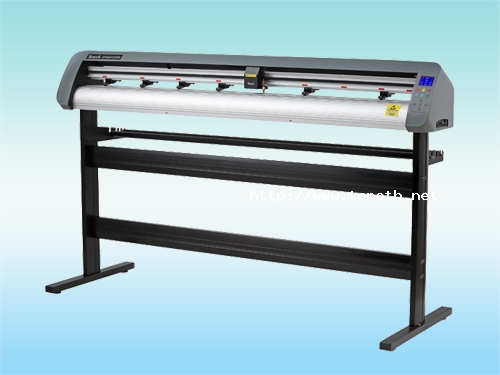

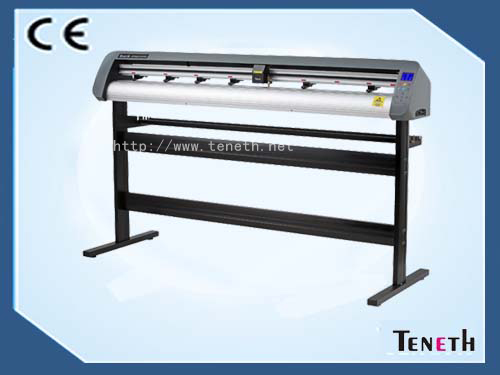

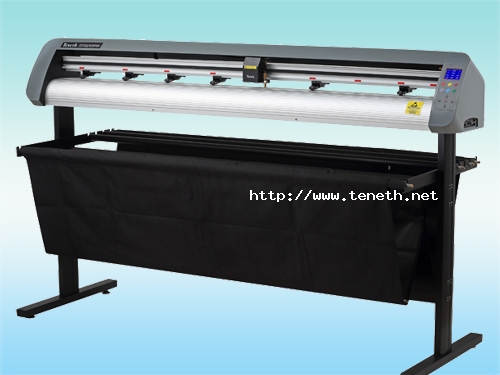

TENETH cutting plotter for vinyl film TH-1600L

CONTACT US LBS

Introduction







Cutting Plotters Parameter:

Model Information
Grade:Top Grade Brand: TENETH Market time: 2012-7 Warranty: 1 year
Model Number:TENETH cutting plotter TH-1600L
Basic Parameter
Material Sheet metal +aluminum alloy Media way Floor stand(Optional)
Max.Paper feed width 1660MM Max.Cutting Size 1550MM
Paper feeding system Drum steel thorn paper Paper feeding way Dual paper stick flat manually
Axis steel distribution Universal size distribution Number of Axis steel  9pcs
Platen device Double springs huge pressure roller holder  Number of Roller holder 6 units
Driver Micro-step driver Origin setting Set each original points manually
Cutting Speed 50-500MM/S Cutting length Unlimited
Cutting Precision 0.005MM Repeatable <0.005MM
precision
Cutting force 5-500g Cutting thickness 0.05MM-1MM
Idling Speed 0-3 gear adjustable Noise 60-65dB
Control System
Mainboard 32-bit ARM7 CPU,4MB Control Panel  11 silicon buttons + LCD touch screen
transmission mode Serial Port+USB+U disk Repeat Function Offline a key re-engraved to start
Repeat Function 1 - 500pcs Memory Function Power off doesn't remove source files
Memory Capacity 128Mb Transmission speed 38.4K/56K
Origin Memory Cutting Pause Paper Origin Memory Display Chinese and English Display Switch
Plotter Instruction Compatible DM/PL,HP/GL Output software Artcut,signcut flexi CorelDRAW,CAD,Ai,etc
Cutting Consumable
Blade Diameter 1.49mm the tungsten cutter Drawing Refills Atomic Drawing Refills
Voltage Consumption
Power supply AC90~240V/50HZ-60HZ Working Enviroment +5-+35℃,Humidity: 30%-70%
Standby power consumption <25W Working Consumption <100W
Volume/Weight
Package Size 1900×350×440mm  Gross weight 45KG
Applicable Industries
Advertisement; Glass sandblasting; Marble blasting; Die cutting samples; Article giftware making; Car/Wall stikcer; Paper Pattern; Printing; Logo and Signs.
Standard configuration:
Machine 1 set,1 set floor stand,1 serial port,1 pcs USB cable,1pcs CD,1pcs blade holder,3pcs blades,1pcs drawing pen.
Note: The above technical parameters are subject to change without any other notice.
