A3 sheet cutter

CONTACT US LBS

Introduction

 Gray A3 left side.jpg



Gray A3 right side.jpg



A3 2.jpg






Model

A3
Media way Auto paper feeding
Mainboard 32-bit ARM7 CPU 168MHz,128Mb,High-speed CACHE memory
Control panel 10 membrane buttons+3.0 inch touch screen
Driver High speed, big power step motor, micro-step driver(Servo moto optional)
Maximum cuttingArea (483*329)mm
Maximum cutting speed 800mm/s
Cutting force 10-1000g（digital adjustment)
Mechanical precision 0.025mm
Repeatable precision <±0.025mm
Type of plotter pen All types diameter 11.4mm plotter pen
Plotter instruction Auto Compatible DM/PL,HP/GL
Interface USB/U disk/Serial Port/WiFi
Power supply AC220V/110V,50Hz
Power consumption <80W
Knife(blade) Imported hardness alloy steel blade
Operating environment Temperature:5-35°C,Relative Humidity:30%～70%
Package size 810*540*340mm
Gross weight 32kg

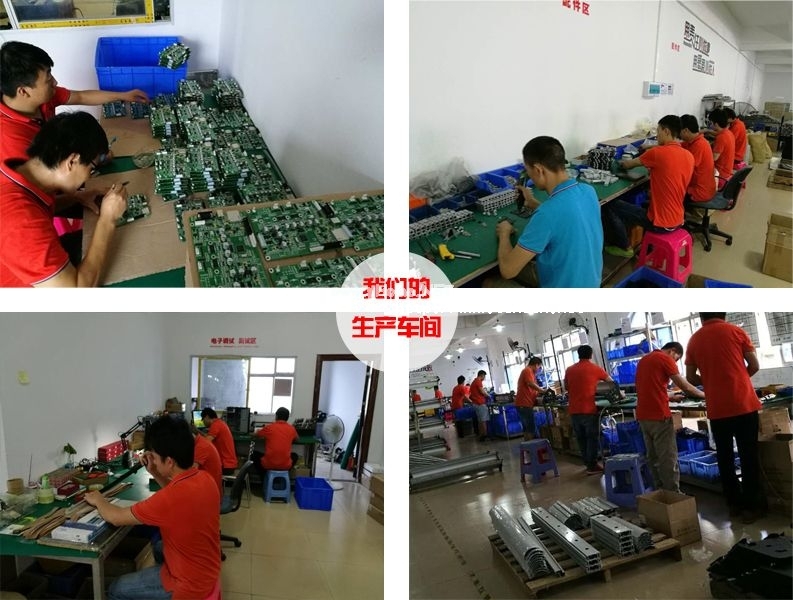

 Our workshop1.jpg

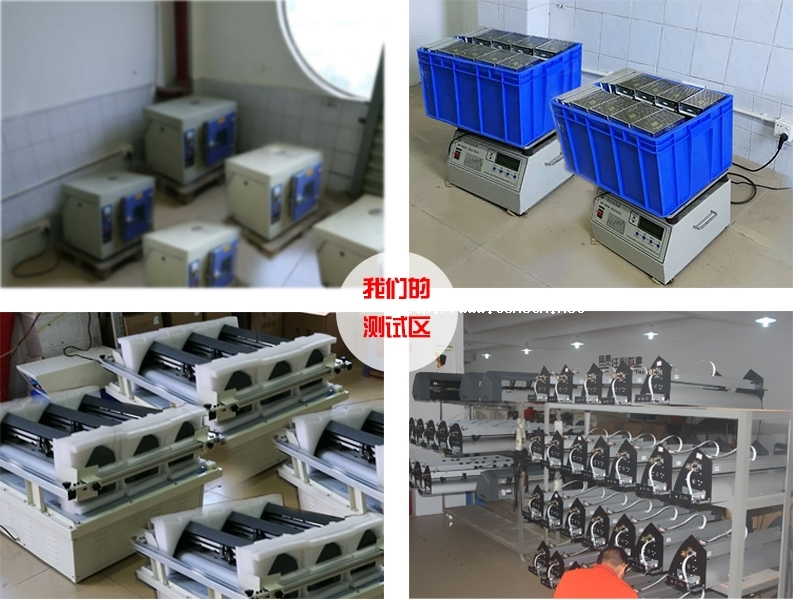

our testing area.jpg
